6 - Double Sink Bench With Splashback

Modular_sinks,_tables_and_shelving

For specification and further detail on each of our products, please click to download drawings and data sheets available within each product category below.

Full Simply Stainless Product Brochure - Available as information and sales tool
Carton Size, Weights and Load Bearing - Maximum weight bearing per unit & shipping weight
Cleaning Instructions - Important as may effect warranty
Lifetime Warranty - Simply Stainless Certificate of Warranty
Studweld Position - Stud position under worktop for drawers
Upstand Vermin Seal - Unique system to prevent vermin and bacteria buildup
Max and Min Bench Height Adjustment - Height adjustment using standard feet or extra-long feet
Certificate of Sustainability - Steps Simply Stainless is taking to reduce our carbon footprint

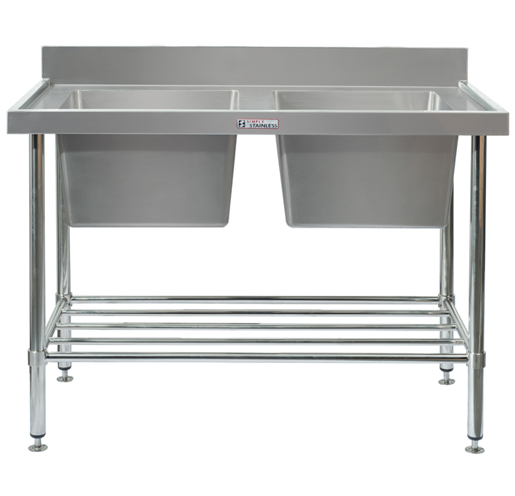

Double Sink Bench With Splashback
  • Wet bench with two fully welded central fabricated bowls
  • Splashback available in 600mm and 700mm depth
  • 304 grade, 1.2mm thick stainless steel top with large single channel stainless steel top hat stiffening
  • 38mm diameter stainless steel tube legs, 1.2mm thick
  • 19mm diameter stainless steel tube undershelf, 1.2mm thick
  • Adjustable stainless steel disk feet fitted as standard
  • Supplied flat packed ready for self-assembly
  • 100mm splashback (600 series) or 150mm splashback with beveled edge (700 series) with unique vermin proofing system for added protection
  • Fully welded and polished bowls - 450 x 450 x 300 deep (60 litres, used on 1200, 1500, 1800, & 2100 models) 600 x 450 x 300 deep (81 litres, used on 2400 model)
  • 1800, 2100 & 2400 models supplied with six legs as standard
  • Pre-punched waste hole to suit 90mm waste, supplied with Watermark and Watercorp approved commercial grade basket arrestor sink waste

For detailed drawing please click on the PDF file available for each individual unit below.

CodeDimensions mm
(length x depth x height)
Drawing
06-6-12001200 x 600 x 900
06-6-15001500 x 600 x 900
06-6-18001800 x 600 x 900
06-6-21002100 X 600 X 900
06-6-24002400 x 600 x 900
06-7-12001200 x 700 x 900
06-7-15001500 x 700 x 900
06-7-18001800 x 700 x 900
06-7-21002100 x 700 x 900
06-7-24002400 x 700 x 900
