8 - Dish Wash inlet bench with sink

Suits leading brand of popular commercial dishwashers
Bench available in 600 and 700mm depth
1.2mm thick stainless steel top with large single channel stainless steel top hat stiffening
38mm diameter stainless steel tube legs, 1.2mm thick
Adjustable stainless steel disk feet fitted as standard
19mm diameter stainless steel tube under-shelf, 1.2mm thick
Available as left or right entry
Bowl size 450mm x 450mm x 300mm deep, (60 litres) 1.2mm thick, fully welded and polished (bowl positioned 175mm in from dishwasher leading edge)
Pre-punched waste hole to suit 90mm waste, supplied with Watermark and Watercorp approved commercial grade basket arrestor sink waste

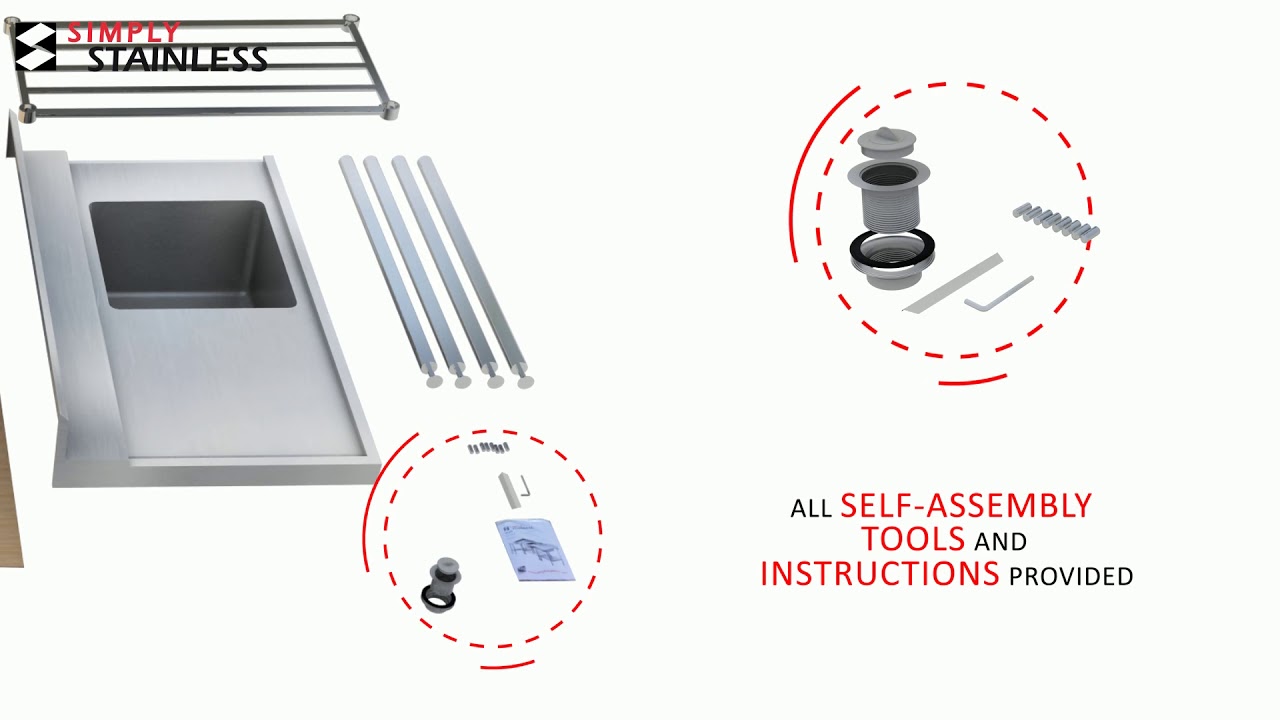

Supplied flat packed ready for self-assembly
100mm splashback (600 series) or 150mm splashback with beveled edge (700 series) with unique vermin proofing system for added protection

For detailed drawing please click on the PDF file available for each individual unit below.

Code	Dimensions mm (length x depth x height)	Drawing
08-6-1200L	1200 x 600 x 900	08-6-1200L-F.dwg 08-6-1200L-P.dwg 08-6-1200L.pdf
08-6-1200R	1200 x 600 x 900	08-6-1200R-F.dwg 08-6-1200R-P.dwg 08-6-1200R.pdf
08-6-1500L	1500 x 600 x 900	08-6-1500L-F.dwg 08-6-1500L-P.dwg 08-6-1500L.pdf
08-6-1500R	1500 x 600 x 900	08-6-1500R-F.dwg 08-6-1500R-P.dwg 08-6-1500R.pdf
08-6-1650L	1650 x 600 x 900	08-6-1650L-F.dwg 08-6-1650L-P.dwg 08-6-1650L.pdf
08-6-1650R	1650 x 600 x 900	08-6-1650R-F.dwg 08-6-1650R-P.dwg 08-6-1650R.pdf
08-6-1800L	1800 x 600 x 900	08-6-1800L.DWG 08-6-1800L.PDF
08-6-1800R	1800 x 600 x 900	08-6-1800R.DWG 08-6-1800R.PDF
08-6-2100L	2100 x 600 x 900	08-6-2100L.DWG 08-6-2100L.PDF
08-6-2100R	2100 x 600 x 900	08-6-2100R.DWG 08-6-2100R.PDF
08-7-1200L	1200 x 700 x 900	08-7-1200L-F.dwg 08-7-1200L-P.dwg 08-7-1200L.pdf
08-7-1200R	1200 x 700 x 900	08-7-1200R-F.dwg 08-7-1200R-P.dwg 08-7-1200R.pdf
08-7-1500L	1500 x 700 x 900	08-7-1500L-F.dwg 08-7-1500L-P.dwg 08-7-1500L.pdf
08-7-1500R	1500 x 700 x 900	08-7-1500R-P.dwg 08-7-1500R.pdf
08-7-1650L	1650 x 700 x 900	08-7-1650L-F.dwg 08-7-1650L-P.dwg 08-7-1650L.pdf
08-7-1650R	1650 x 700 x 900	08-7-1650R-F.dwg 08-7-1650R-P.dwg 08-7-1650R.pdf
08-7-1800L	1800 x 700 x 900	08-7-1800L.DWG 08-7-1800L.PDF
08-7-1800R	1800 x 700 x 900	08-7-1800R.DWG 08-7-1800R.PDF
08-7-2100L	2100 x 700 x 900	08-7-2100L.DWG 08-7-2100L.PDF
08-7-2100R	2100 x 700 x 900	08-7-2100R.DWG 08-7-2100R.PDF
