2 - Work Bench with splash back

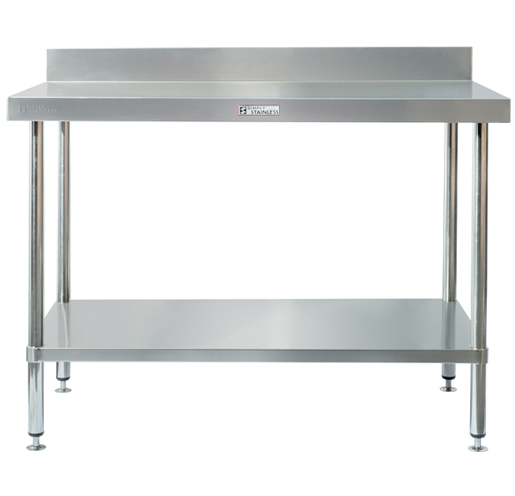

Work Bench with splash back
  • Work bench with rear splashback available in 600mm and 700mm depth
  • 1.2mm thick stainless steel top
  • 3mm zincalume coated steel reinforced backing to work top
  • 38mm diameter round stainless steel tube legs, 1.2mm thick
  • Adjustable stainless steel disk feet as fitted as standard
  • 1.2mm thick stainless steel undershelf with top hat stiffening
  • 100mm splashback (600 series) or 150mm splashback with beveled edge (700 series) with unique vermin proofing system for added protection
  • 1800, 2100 & 2400mm length units supplied with 6 legs
  • Supplied flat packed ready for self-assembly
  • Studs fitted below worktop for fixing of accessories (drawer, etc.)

For detailed drawing please click on the PDF file available for each individual unit below.

Data Sheet 600 Series
Data Sheet 700 Series
Data Sheet Low Height Mixer Stand
Load Capacity
Cleaning Instructions

CodeDimensions mm (length x depth x height)Drawing
02-6-0300300 x 600 x 90002-6-0300-F.dwg
02-6-0300.dwg
02-6-0300-P.dwg
02-6-0300.pdf
02-6-0450450 x 600 x 90002-6-0450-F.dwg
02-6-0450.dwg
02-6-0450-P.dwg
02-6-0450.pdf
02-6-0600600 x 600 x 90002-06-0600-F.dwg
02-06-0600.dwg
02-06-0600-P.dwg
02-6-0600.pdf
02-6-0900900 x 600 x 90002-06-0900-F.dwg
02-06-0900.dwg
02-06-0900-P.dwg
02-6-0900.pdf
02-6-12001200 x 600 x 90002-06-1200-F.dwg
02-06-1200.dwg
02-06-1200-P.dwg
02-6-1200.pdf
02-6-15001500 x 600 x 90002-06-1500-F.dwg
02-06-1500.dwg
02-06-1500-P.dwg
02-6-1500.pdf
02-6-18001800 x 600 x 90002-06-1800-F.dwg
02-06-1800.dwg
02-06-1800-P.dwg
02-6-1800.pdf
02-6-21002100 x 600 x 90002-6-2100.dwg
02-6-2100-P.dwg
02-6-2100.pdf
02-6-24002400 x 600 x 900 02-06-2400-F.dwg
02-06-2400.dwg
02-06-2400-P.dwg
02-6-2400.pdf
02-7-0300300 x 700 x 90002-7-0300-F.dwg
02-7-0300.dwg
02-7-0300-P.dwg
02-7-0300.pdf
02-7-0450450 x 700 x 90002-7-0450-F.dwg
02-7-0450.dwg
02-7-0450-P.dwg
02-7-0450.pdf
02-7-0600600 x 700 x 90002-7-0600-F.dwg
02-7-0600.dwg
02-7-0600-P.dwg
02-7-0600.pdf

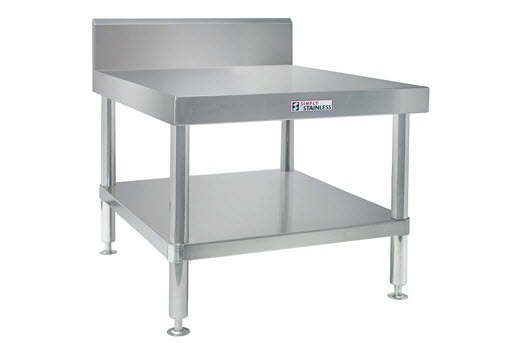

02-7-0600MS600 x 700 x 500Data Sheet 02.07 MIXER.pdf
02-7-0900900 x 700 x 90002-7-0900-F.dwg
02-7-0900.dwg
02-7-0900-P.dwg
02-7-0900.pdf
02-7-12001200 x 700 x 90002-7-1200-F.dwg
02-7-1200.dwg
02-7-1200-P.dwg
02-7-1200.pdf
02-7-15001500 x 700 x 90002-7-1500-F.dwg
02-7-1500.dwg
02-7-1500-P.dwg
02-7-1500.pdf
02-7-18001800 x 700 x 90002-7-1800-F.dwg
02-7-1800.dwg
02-7-1800-P.dwg
02-7-1800.pdf
02-7-21002100 x 700 x 90002-7-2100 F.dwg
01-7-2100.dwg
02-7-2100 P.dwg
02-7-2100.pdf
02-7-24002400 x 700 x 90002-7-2400-F.dwg
02-7-2400.dwg
02-7-2400-P.dwg
02-7-2400.pdf
